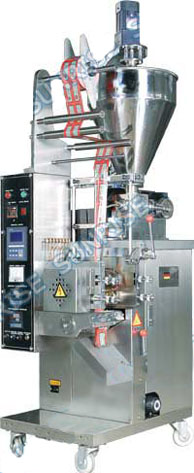

Model DXDJ-40II
Automatic Sauce Packaging Machine
Applications:
It is suitable for automatically packaging of viscous products with free-flowing such as tomato sauce lotion noodle jam, edible oil ,meat jam and broth The processes of bag making measuring, filling, sealing, counting and hot pressing codes can be done automatically Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE,PET/PE,NYLON etc.

Main Features:
1. All stainless steel cover meets to GMP standard.
2. The machine is suitable for hot filling and assembling attemperator depend on customer’s requirement.
3. Automatic adjustment of pouch size and filling range.
4. Automatic self-support lubricating system, the machine can work 24 hours.
5. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
6. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ±2%.
7. The machine can be equipped with a product stirrer and heated jacket for high temperature product packaging.
8. Ink printer and conveyor are as an option.


DXDJ-40II/DXDJ-40P
Bag size (L)55-110mm (W)30-80mm
Capacity* 25-50 (bags/min)
Filling range 5-40ml
Dimension 600x790x1780(mm3)
Weight 350(kg)
Power 220V,50HZ,1.3KW

*Depending on product property and filling range
